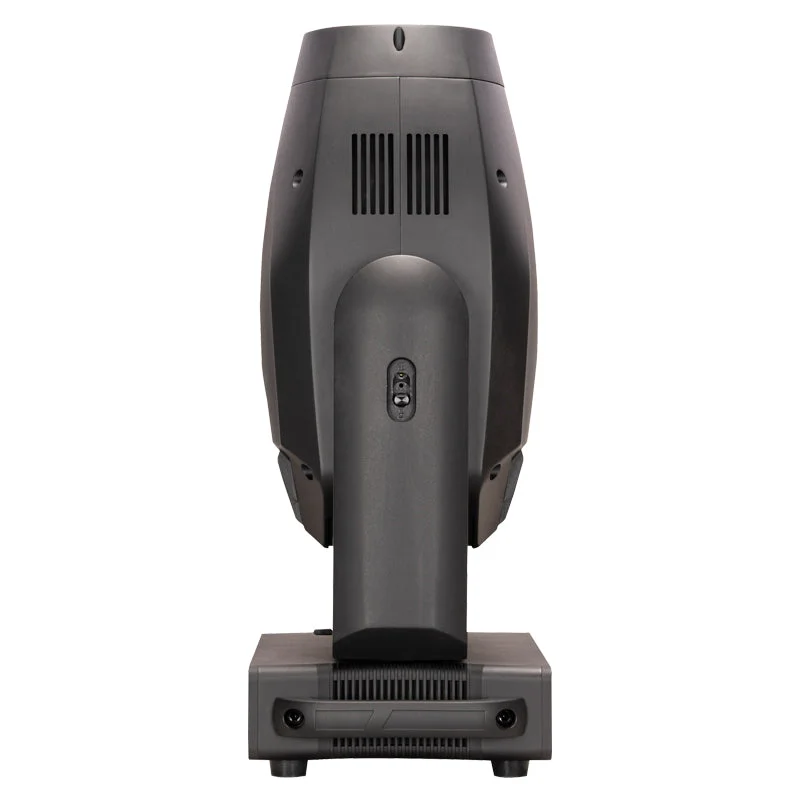

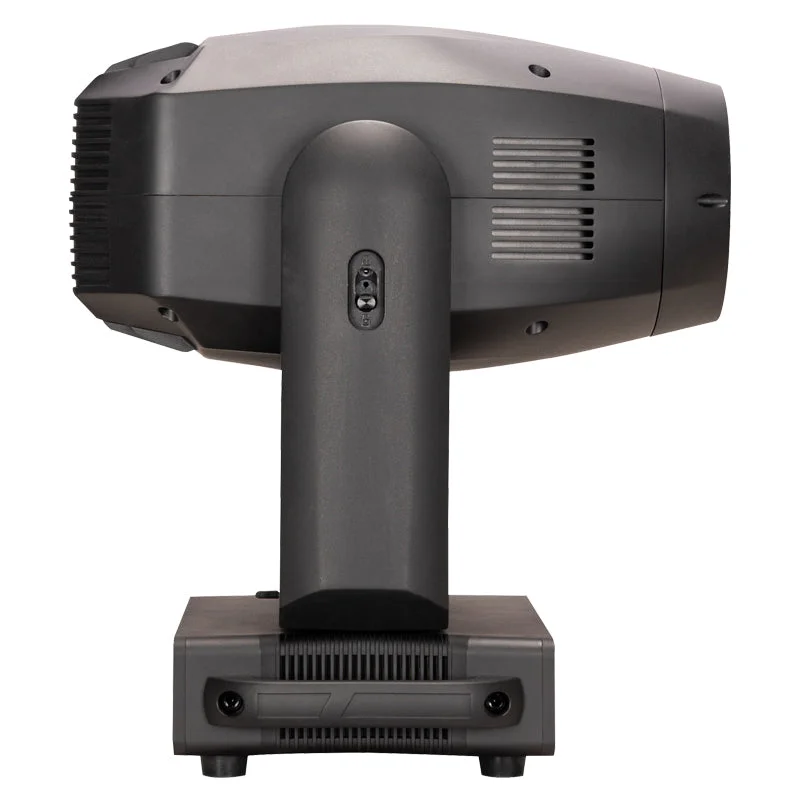

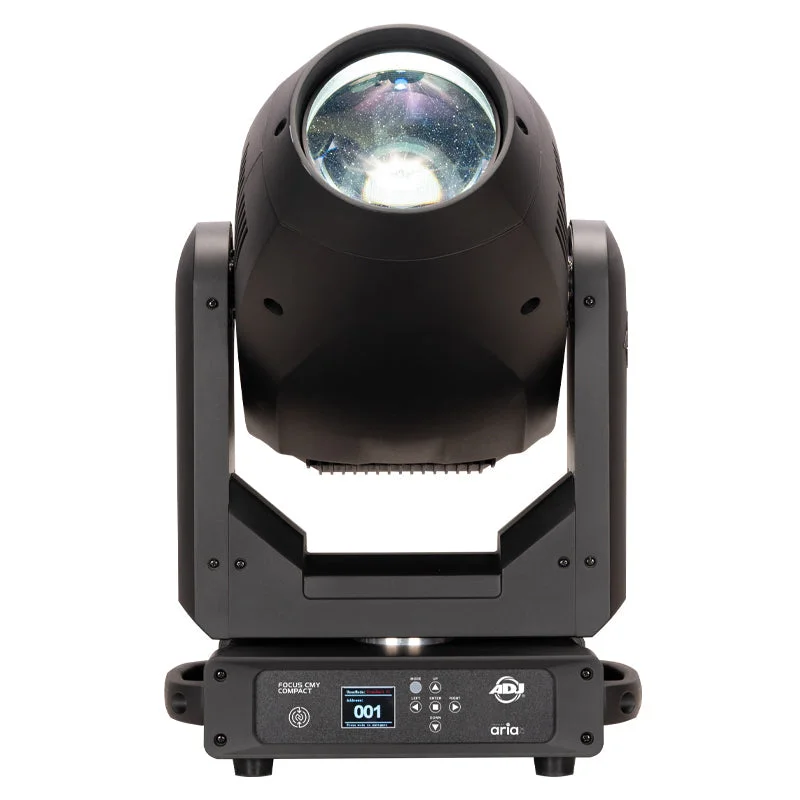

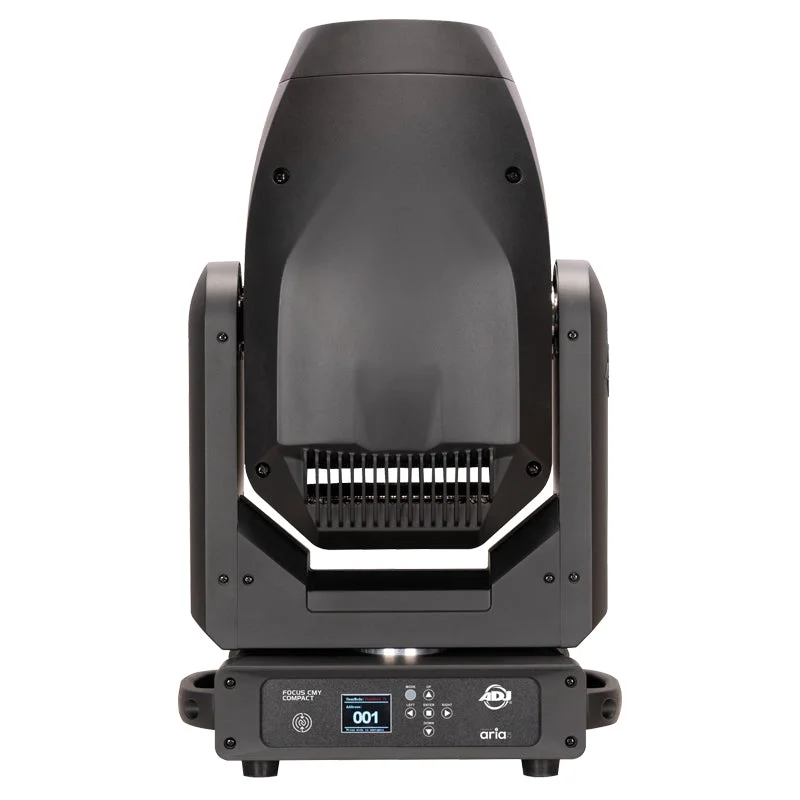

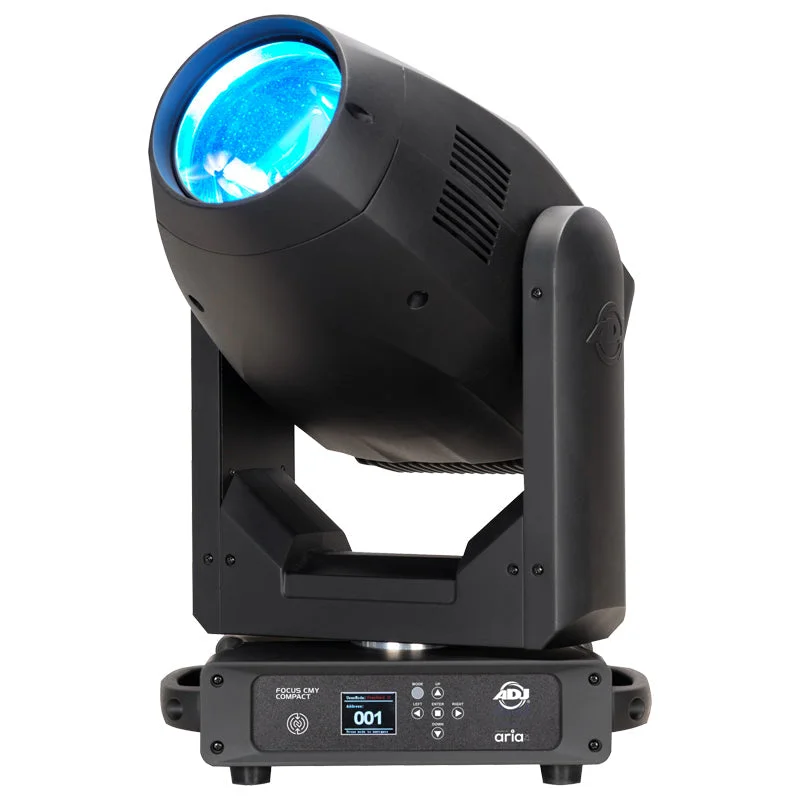

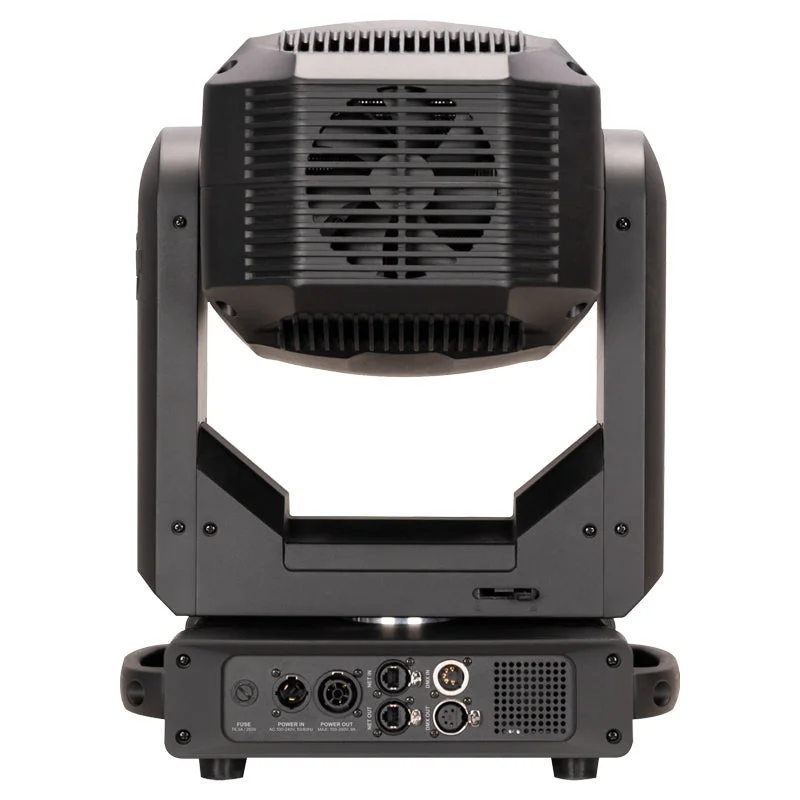

ADJ FOC871 Focus CMY Compact Automated Luminaire

Delivering best-in-class power and versatility, the ADJ Focus CMY Compact is an automated luminaire capable of functioning interchangeably as a beam, spot or wash. Powered by a 400-watt LED engine it delivers output of up to 14,500 lumens. An extensive suite of beam shaping tools begins with full CMY + CTO color mixing and also includes two GOBO wheels, two rotating prisms, two frost filters, and Aria X2 wireless, as well as motorized zoom (3 degrees~52 degrees) and focus. All of this is packed into a compact and robust fixture that weighs less than 45 lbs. (20kg).

PHOTOMETRIC DATA

• 14,500 Total Lumens
• CRI: 64 (80 or 90 with HCRI Filter)

EFFECTS

• 6-Facet Circular & 6-Facet Linear Rotating Prisms
• 2x Frost Filters (Light and Heavy)
• Motorized Zoom: 3°~52°
• Motorized Focus
• Electronic Dimming & Strobe: 1-20Hz

COLOR

• Full CMY color mixing
• Variable CTO (3200K to 8500K)
• Colors Wheel with 7 dichroic colors (Includes High CRI Filter in slot 7)

GOBOS

• (2) Gobo Wheels

• #1 – (8) Rotating Glass Gobos (Interchangeable and Indexable)
• #2 – (10) Static Glass Gobos

CONTROL / CONNECTIONS

• (3) DMX Channel Modes – Basic (26ch) / Standard (31ch) / Extended (40ch)
• DMX, RDM, sACN and ArtNet
• Aria X2 Wireless Management System

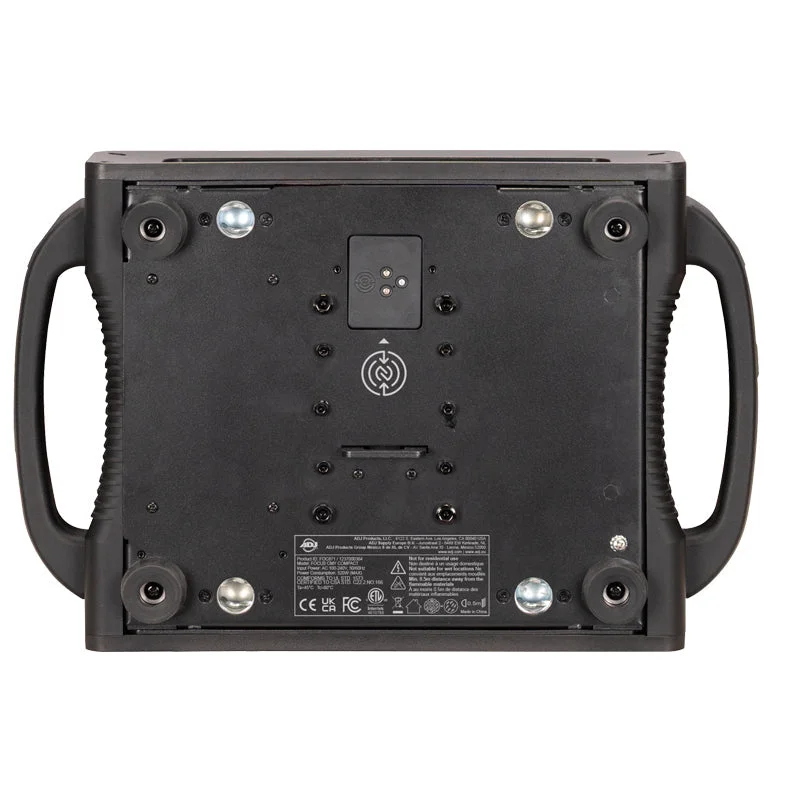

• NFC System
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement
• RJ45 In/Thru Network Ports
• 3 & 5 pin XLR DMX In/Out
• IP65 Locking Power In/Out
• With Wired Digital Communication Network
