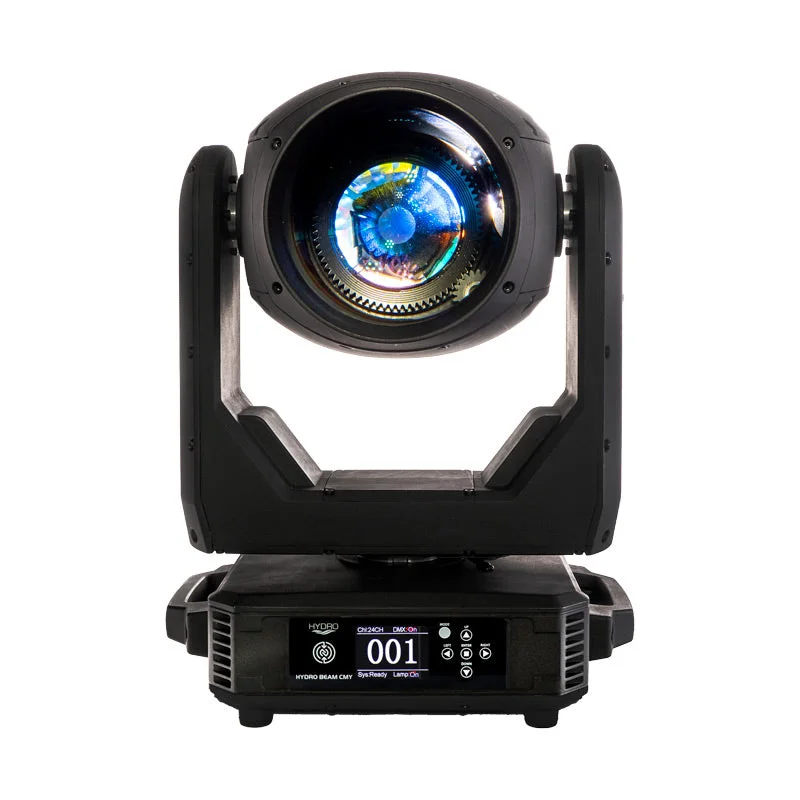

ADJ HYD359 Hydro Beam CMY Automated Beam Luminaire

Offering power, precision and reliability, the Hydro Beam CMY is a versatile IP65-rated automated beam luminaire. Harnessing the power of an OSRAM Sirius HRI 310W PRO discharge lamp, focused through precision-engineered optics and projected from a high-quality glass lens, it generates a razor-sharp 2-degree beam. An extensive feature set is headlined by CMY color mixing and also includes 17 static GOBOS, two rotating prisms, a frost filter, and integrated Aria X2 wireless DMX control and remote fixture management. Featuring lightning-fast movement, this robust fixture is designed to create impressive aerial effects for large indoor as well as outdoor events.

Light Source:

• OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
• Color temperature: 7850K (+/- 500K)
• CRI: 86 (+/- 5)

Color Wheel:

• 14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
• Indexable color wheel for split colors
• Separate Multi-Color Effect

GOBO Wheel:

• 17 static GOBOs + open (4 GOBOs are beam reducers)
• GOBO Shake Effect

Prism Wheels:

• 2 Rotating prisms
• 16 facet circular and 6 facet linear prisms
• Prisms Overlay

Control:

• Protocols: DMX512, RDM, Aria X2, NFC
• Control Mode: DMX512 & Manual (On-board Controls)
• 2 DMX Channel Modes: 20/24 Channels
• Color LCD display with 4-button function menu
• 0-100% smooth dimming
• Various strobe speeds
• With Wired Digital Communication Network

Approvals / Ratings

• CE
• cETLus (Pending)
• FCC
• IP65
