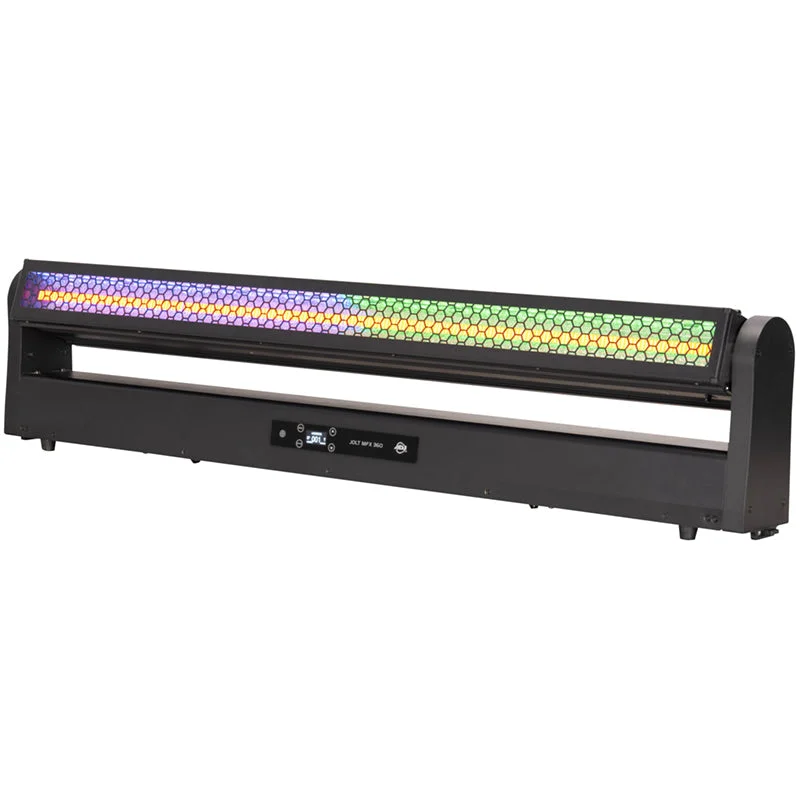

ADJ JOL360 Jolt MFX 360 LED Bar

Combining the effects from two popular ADJ fixtures into one groundbreaking product, the Jolt MFX 360 delivers a fusion of classic atmosphere with modern intensity. On one side is the timeless glow of the Vintage Bar: a potent warm white LED blinder strip surrounded by vibrant background color glow. One the other is the raw power of the Jolt Bar: a dazzling white LED strobe strip surrounded by intense RGB wash LEDs. Fast motorized tilt allows near instant transition between the two effects, while 360 degrees continuous rotation unlocks mesmerizing hybrid effects. With pre-programmed effect macros, a lens slot on the Jolt Bar side for optional frost filters, and Aria X2 wireless built in, this unique fixture is ready to deliver both on the road and for integration applications.

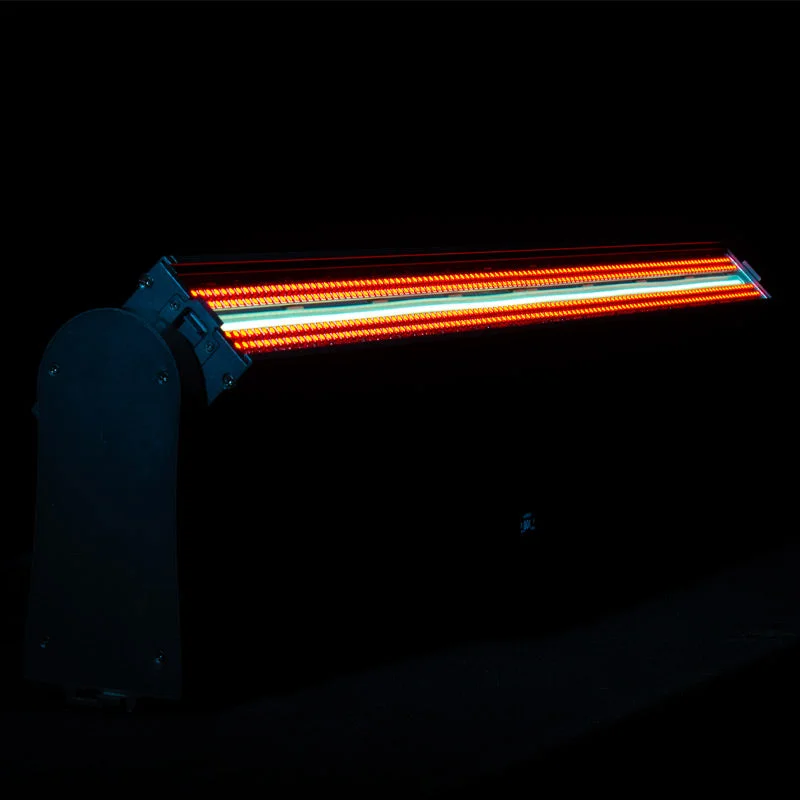

Vintage Effect Side

• 4 x 100-Watt COB Amber (1800K) LED’s
• Wavelength: 588-592nm
• Lux: 473
• CRI: 60
• Beam Angle: 120°
• Field Angle: 140°
• LED Life (Average): 50,000 Hours
• 140 x 0.8-Watt RGBL SMD LED’s
• Wavelength: Red (620-625nm), Green (520-525nm), Blue (455-460nm), Lime (570nm)
• LED Life (Average): 50,000 Hours

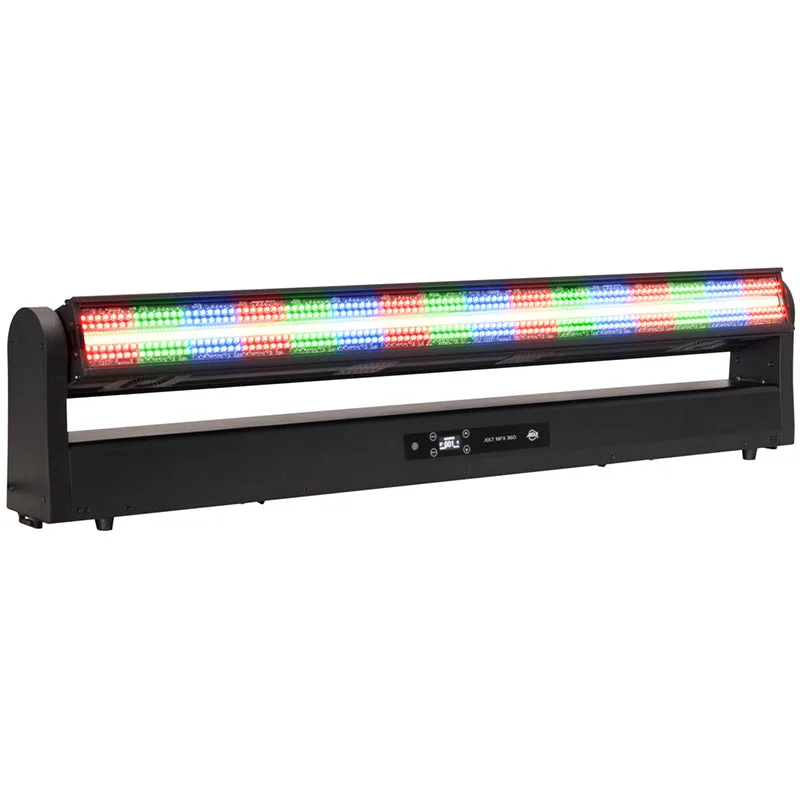

Jolt Bar Effect Side

• 448 x 1-Watt Cool White (6500K) SMD LED’s
• Wavelength: 620nm
• LUX: 585
• CRI: 73
• Beam Angle: 60°
• Field Angle: 80°
• LED Life (Average): 50,000 Hours
• 448 x 0.5-Watt RGB SMD LED’s
• Wavelength: Red (630nm), Green (520-525nm), Blue (470nm)
• LED Life (Average): 50,000 Hours
