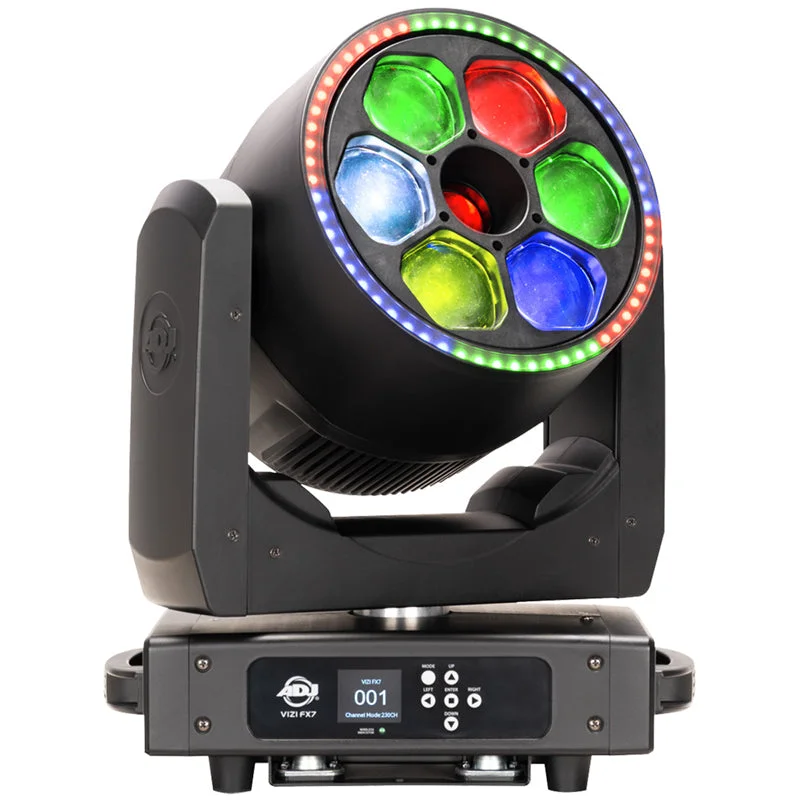

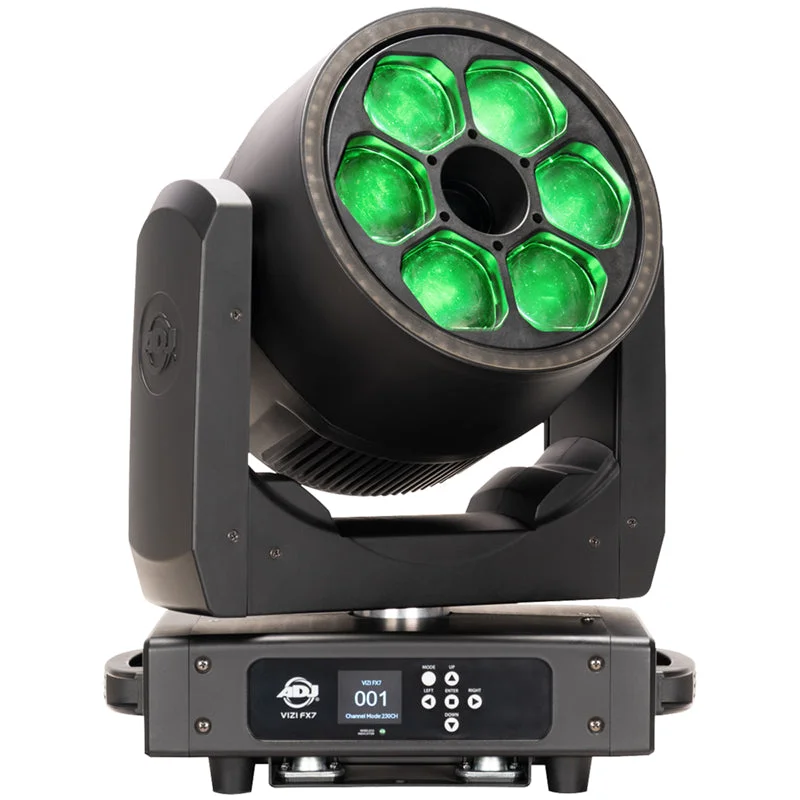

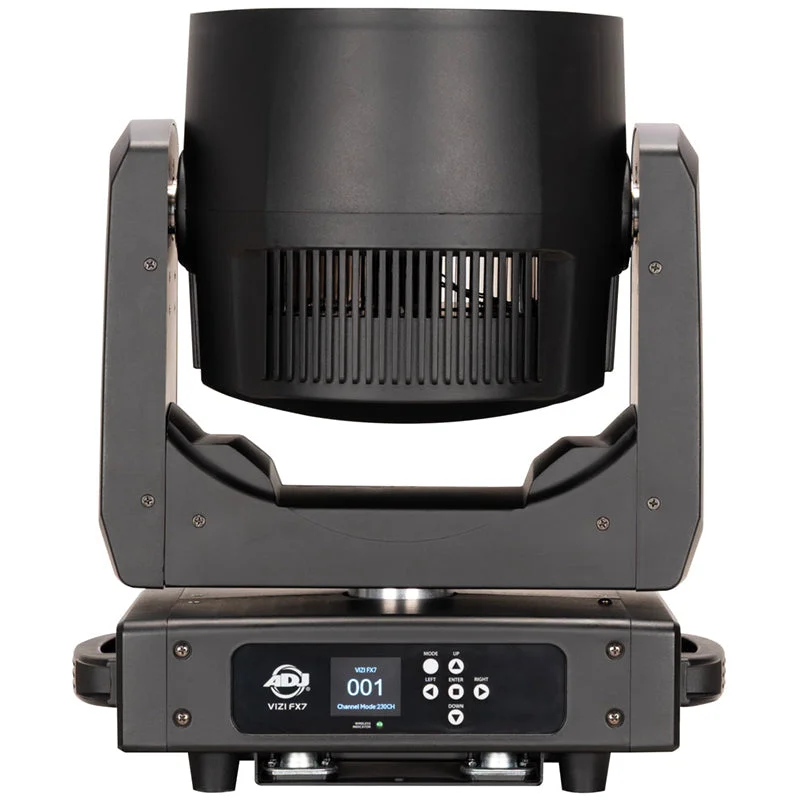

ADJ VIZ563 Vizi FX7 Moving Head Luminaire

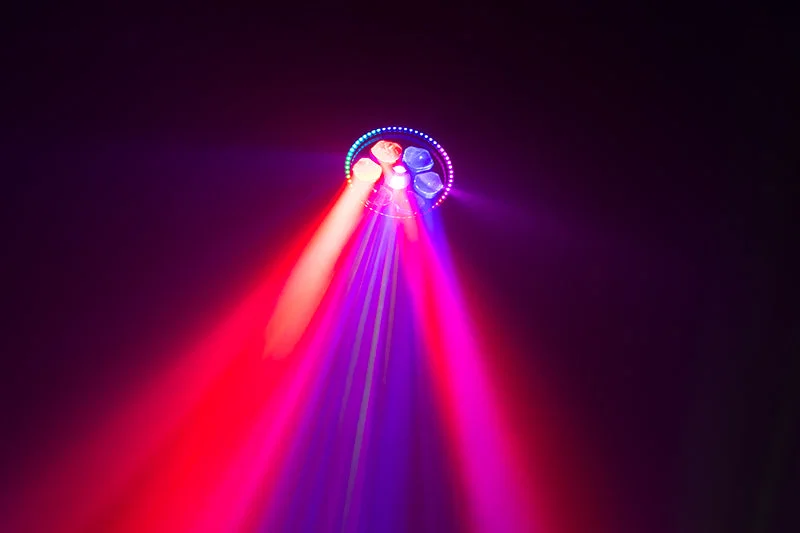

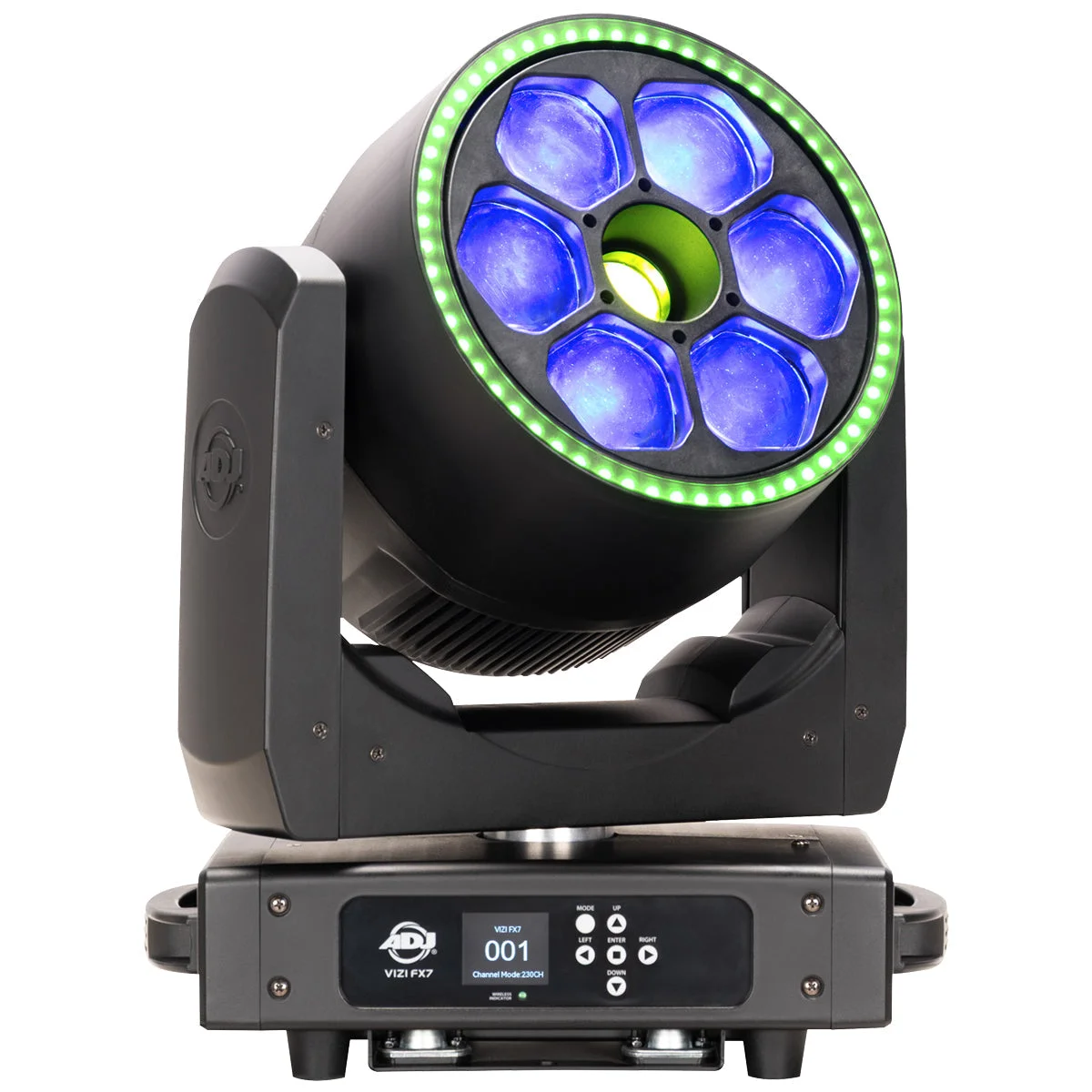

Offering four unique effects in one powerful fixture, a beam, a wash, a multi-colored kaleidoscope, and a LED ring effect, the Vizi FX7 is a professional moving head luminaire ideal for event production and venue integration. With individual pixel control over the primary LEDs and a variety of built-in FX programs, the Vizi FX7’s four distinct functions can be used individually or combined to create a huge variety of aerial effects.

SOURCE:

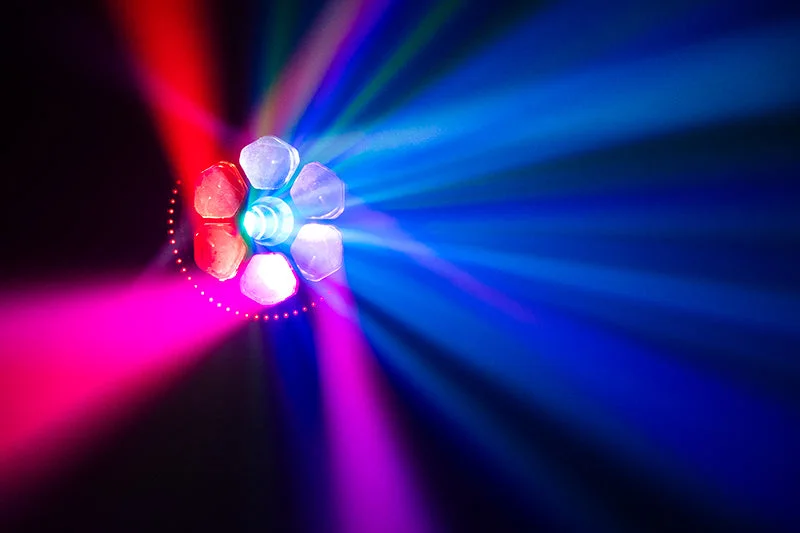

• Main + Kaleidoscope Center
• 7 x 60-Watt RGBL LED’s
• Color Temperature: 2800K ~ 8,500K
• 50,000 Hour Average LED Life*

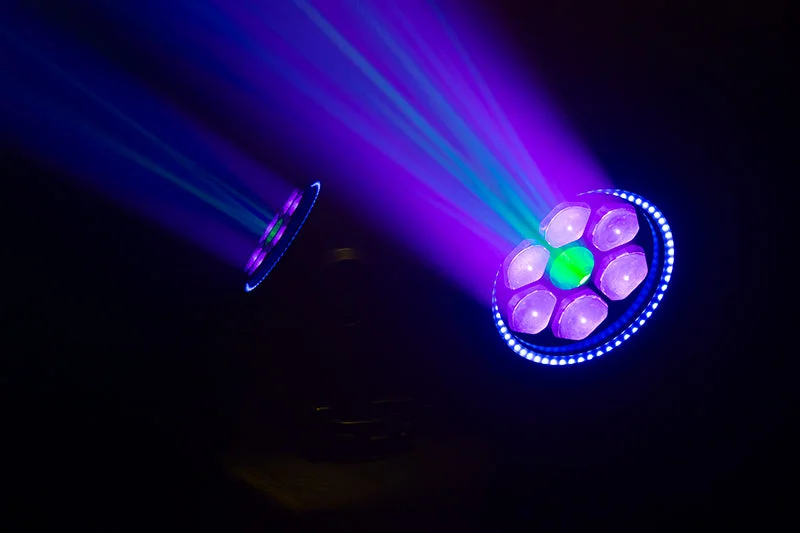

• Ring
• 60 x 0.5-Watt RGB LED’s
• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

EFFECTS:

• Bi-Directional Primary LED Beam Rotation
• Individual Primary LED Pixel Control
• Bi-Directional Multi-Color Rotating Kaleidoscope
• Built-In FX Programs with Speed Control
• Motorized Zoom: 8° to 38°
• 1Hz ~20Hz Strobe Rate (Electronic)

CONTROL / CONNECTIONS:

• (4) DMX Channel Modes (31CH / 55CH / 57CH / 60CH and 237CH) Plus 1 User Definable DMX Mode
• DMX and RDM
• Aria X2 Wireless Management System
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% dimming
• Fan Cooled
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement

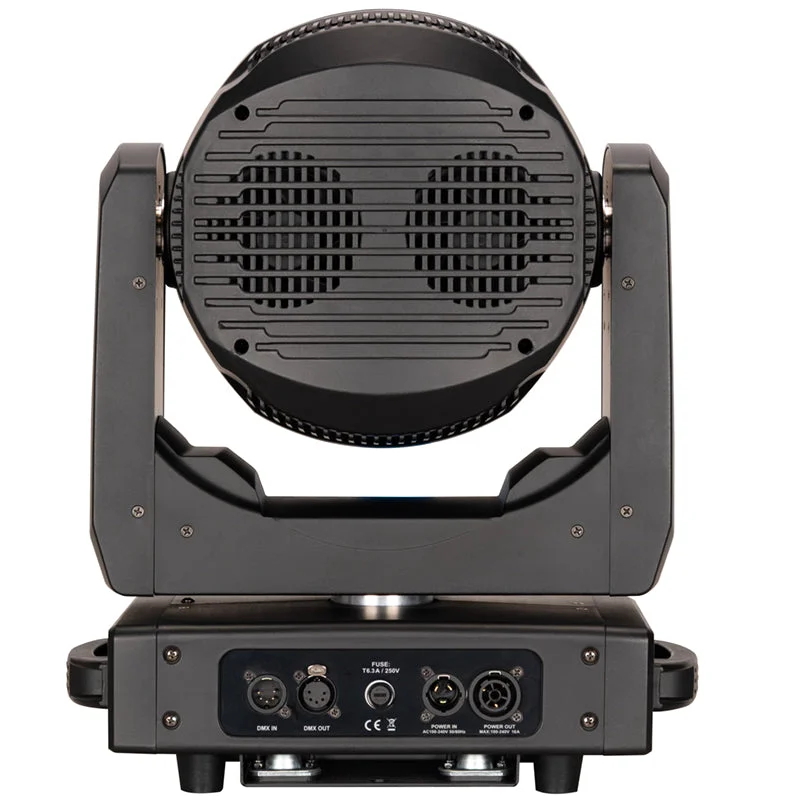

• 5 pin XLR DMX In/Out
• IP65 Locking Power In/Out

APPROVALS / RATINGS:

• cETLus (Control # 5027824)
• CE
• FCC
• UKCA
• IP20
