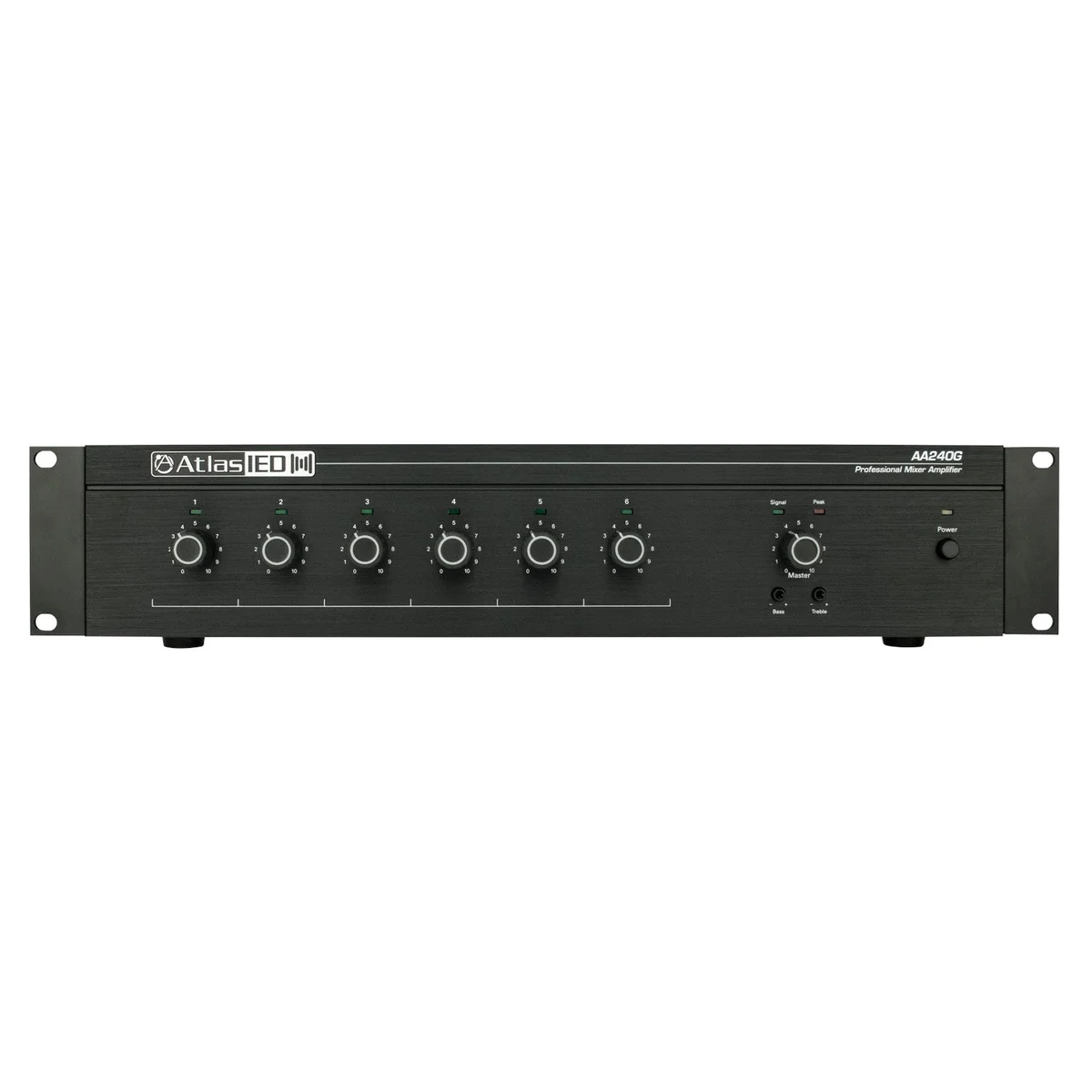

AtlasIED AA240G 6-Input 240W Mixer Amplifier

The AtlasIED AA240G is a 240W mixer amplifier packed with features for paging and background music, small to medium sound masking, and music on hold + paging.

The AA240G is a 240W, 6-input multi load impedance mixer amplifier that is engineered with unique features to assist the contractor or installer in today’s commercial business audio environment. It is designed for distributed paging and background music (BGM) systems, small to medium sound masking systems, and in applications where music on hold (MOH) plus paging is required.

With four microphone / line inputs and two stereo line input, the A240G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. This mixer amplifier features VOX (Voice Operated Mute) and contact closure muting, tone control, Line out and Zone 2 Output. The AA240G offers a very unique Bridge In / Out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. VCA remote level control circuitry is included which may be assigned to the BGM input or globally for the entire amplifier.

The output power of output power of the AA240G will match nicely with AtlasIED FAP, SM, SD, and GD Series loudspeakers. 25V, 70.7V, 100V, and 8Ω outputs are provided.
