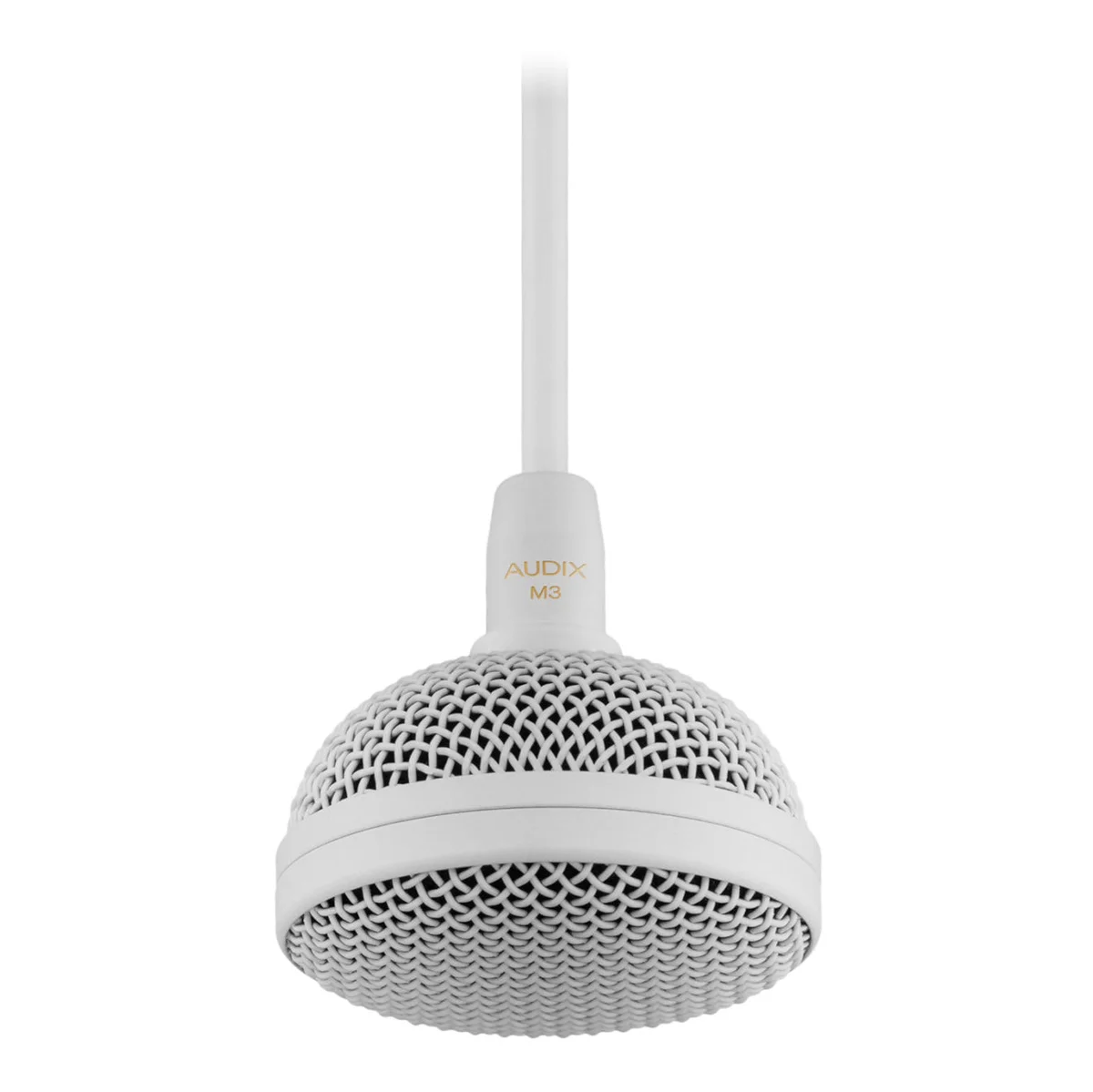

Audix M3 Tri-Element Hanging Ceiling Condenser Microphone

The M3 is an innovative, tri-element hanging ceiling microphone designed for applications where aesthetics, sound quality, and ease of installation are critical. The M3 is an ideal audio capture solution for video conferencing, distance learning, courtroom activities, and surgical procedures. It can also be used for ambient room miking and surveillance.

The M3 ceiling microphone incorporates three phase-coherent hypercardioid capsules with tailored frequency response optimized for speech intelligibility. This is accomplished by minimizing frequencies caused by noise, vibration, paper shuffling, keyboard strokes, fans, and heating /air conditioning. Low noise preamp circuitry is employed for the highest possible signal to noise and studio-quality sound. A high-quality silicone jacketed microphone cable ensures a balanced, shielded signal and a very clean look. Electronics above the ceiling are housed within a plenum-rated junction box and cable connections are made via an RJ45 connector embedded within a proprietary brass housing for an airtight seal.

M3 Models

• M3G: M3W in grey
• M3WSERVO: M3W designed specifically for use with Servoreeler
• M3GSERVO: M3WSERVO in grey
• M3WHM: M3W designed for hard mount ceiling installations without drop tile ceilings (dry wall)
• M3GHM: M3WHM in grey
• M3W6: M3W with 6 foot mic cable
• M3G6: M3W6 in grey
• M3WDK: Dante | AES67 mic and interface kit
• M3GDK: M3WDK in grey
