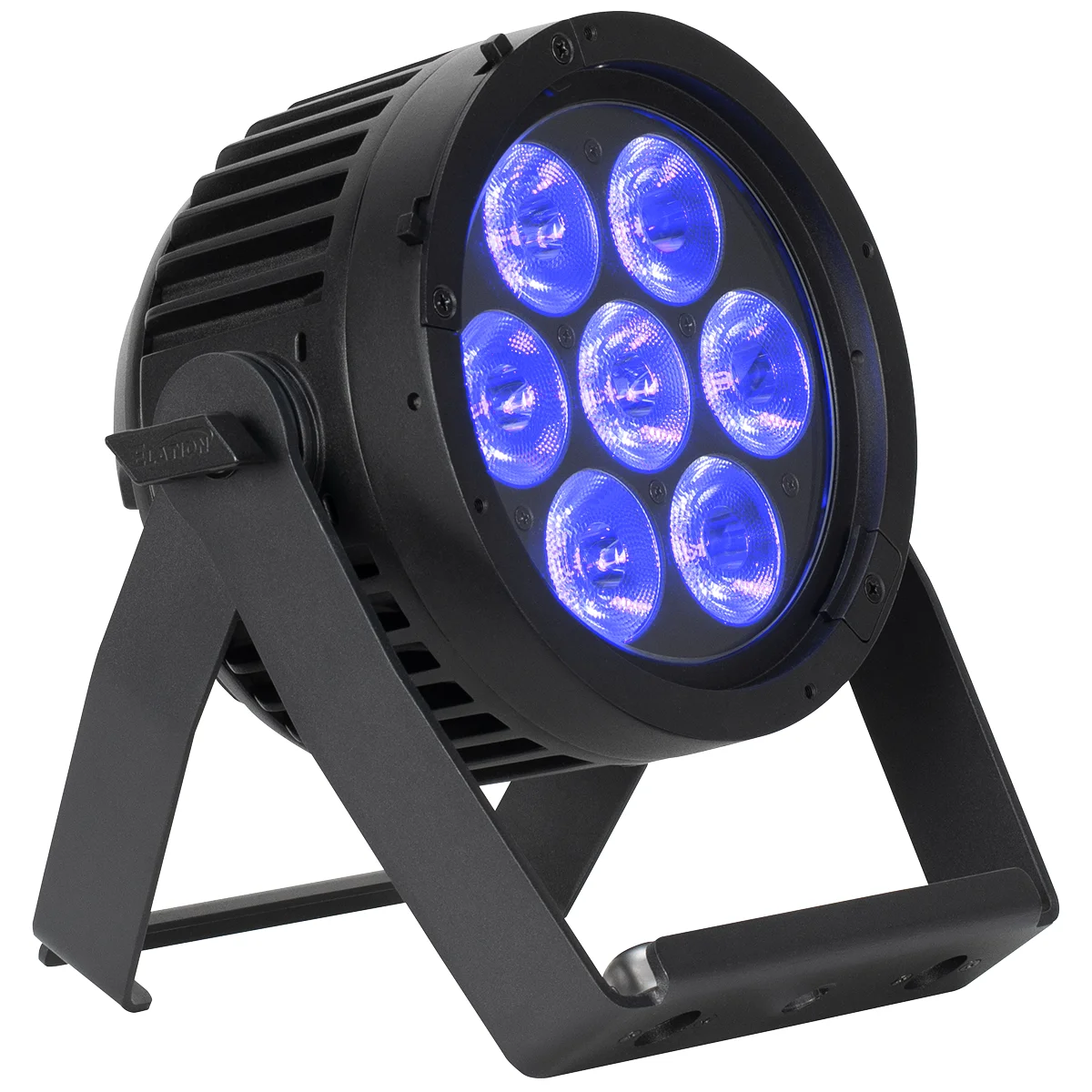

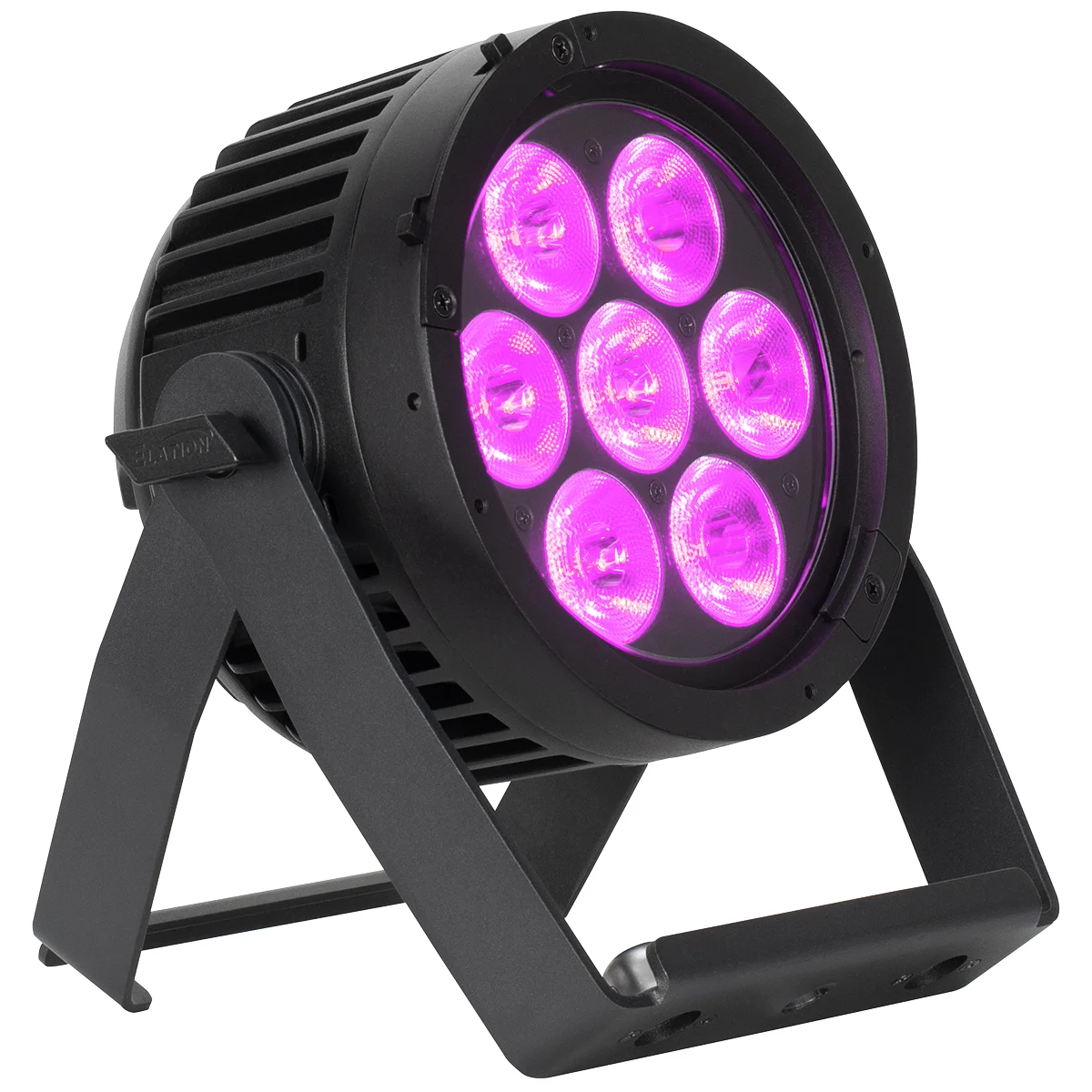

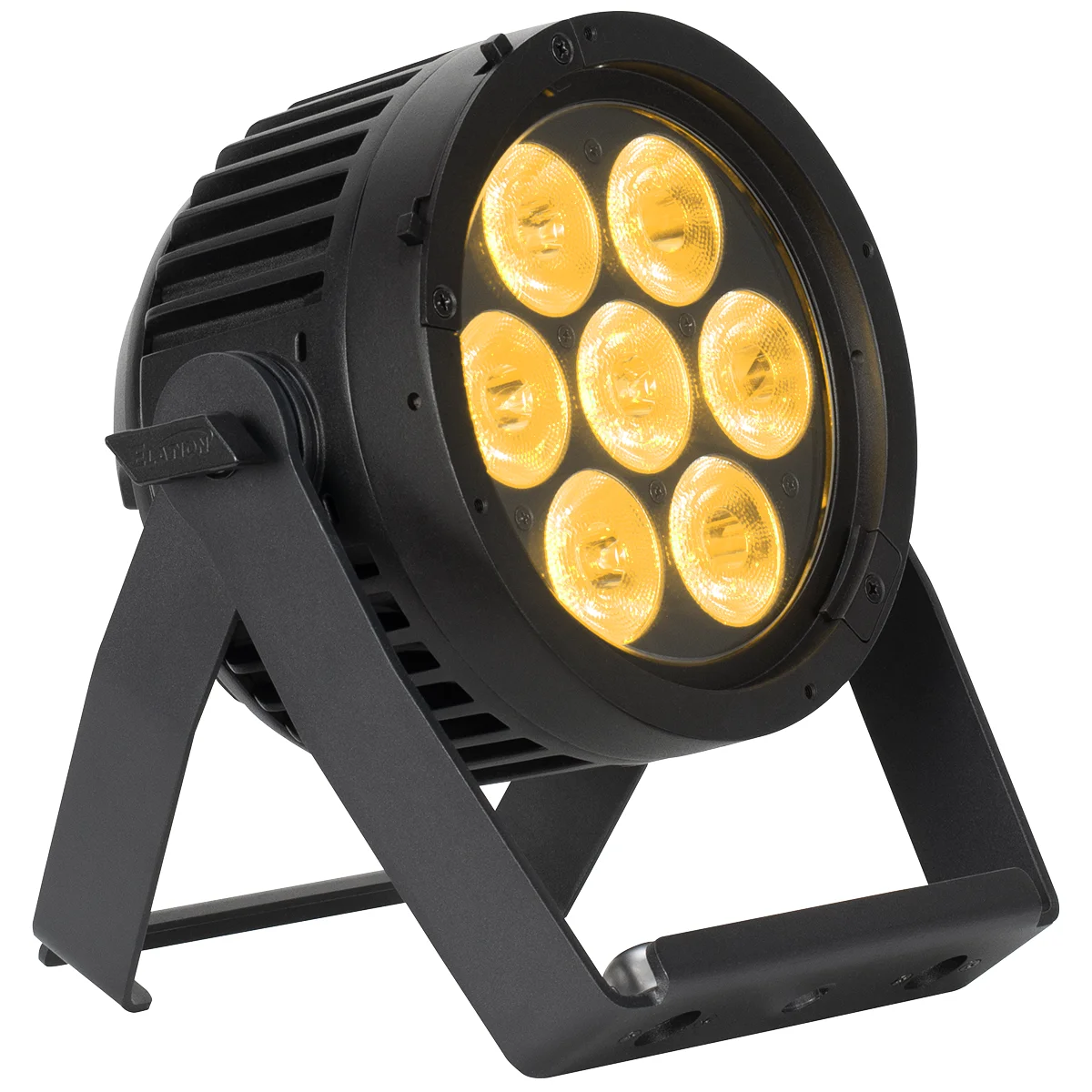

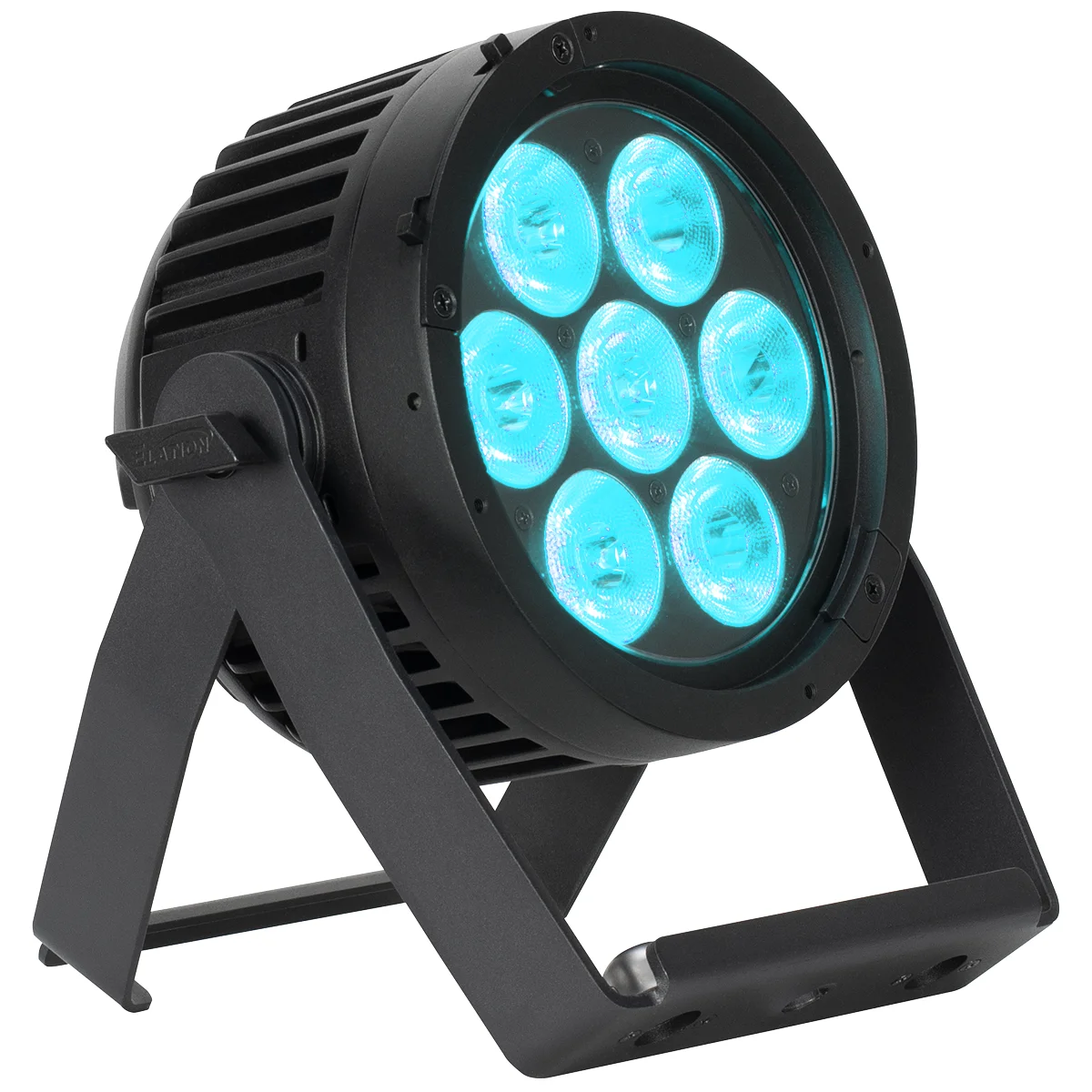

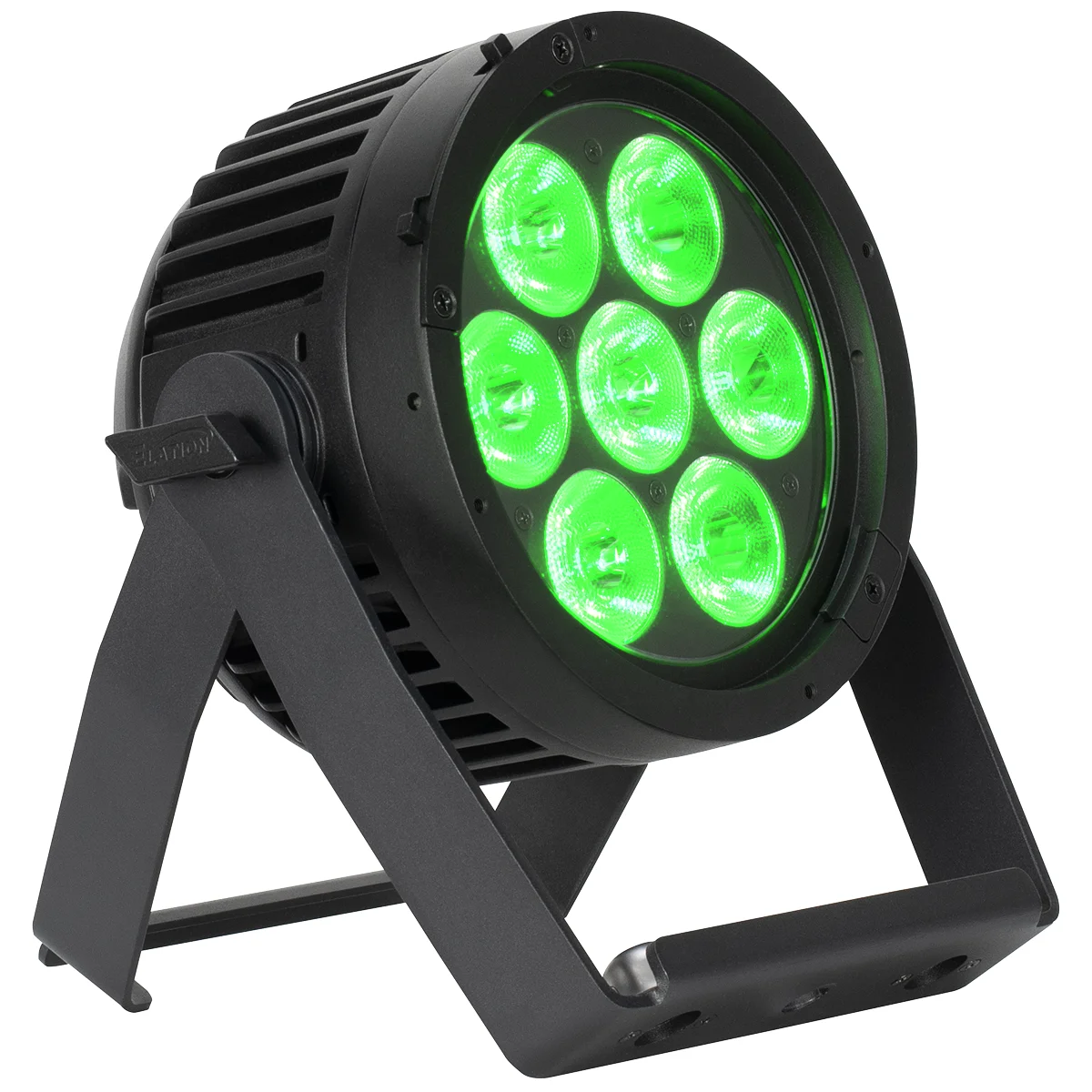

Elation SIX+ PAR S 7x20W RGBLA+UV IP65 LED Wash Light

The SIX+ PAR S is a compact and rugged LED fixture that features (7) 20W RGBLA+UV LEDs, which produce an ultra-wide color spectrum and high-quality light. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, its IP65 rating can handle any environment, and with its marine-grade coating, it’s even safe in harsh coastal environments. The fanless cooling system ensures silent operation allowing it to be installed in the most noise-sensitive environments.

With a six-color LED array, the SIX+ PAR S offers outstanding color rendering capabilities with a high CRI of 93. This, paired with its remotely variably LED refresh frequency allows it to be easily integrated into any TV and Film application. To expand the control capabilities on the SIX+ PAR S, precise color temperature control via a dedicated variable CCT control channel has been integrated. Programming a six-color LED fixture can be complicated so, a CMY emulation mode has been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included. This new fixture also includes our new Aria x2 wireless device management system for easy system maintenance and support.

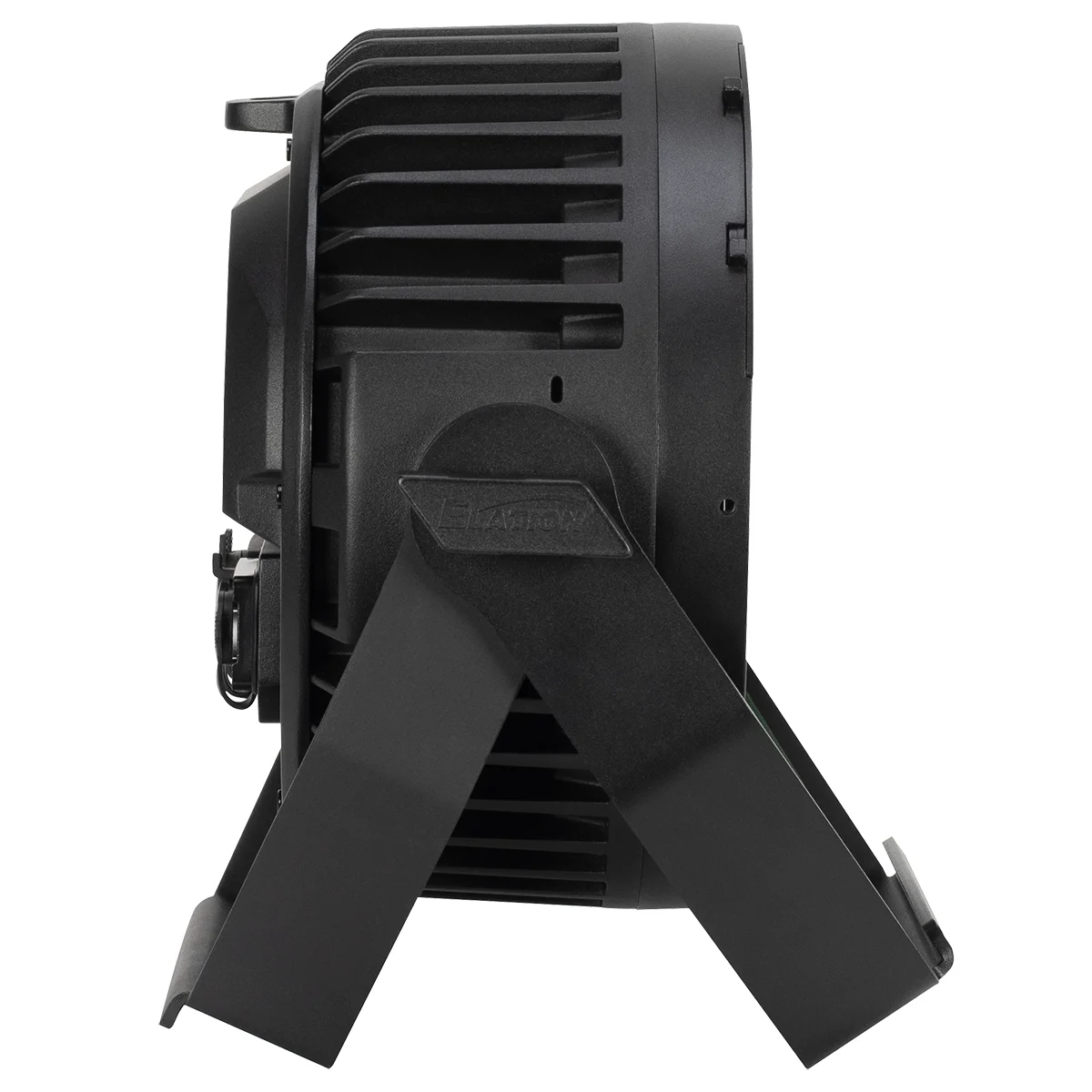

The IP65 housing includes a dedicated diffusion lens holder and the optional gel frame holder can accommodate industry standard 7.5” accessories. One 22° lens is included with the fixture, and other optional lenses are also available. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.

To ensure the SIX+ PAR S can be integrated seamlessly alongside the original SixPar fixtures, great care has been taken to ensure that the new LED array colors match the original. A unique SixPar Emulation DMX mode has been developed so that the new fixtures can be controlled with the same DMX mapping as the original. The color mixing has also been calibrated to virtually emulate the White LED included in the SixPar array and an output limit master setting has been added so your new lights don’t overpower any older fixtures in the rig.

The SIX+ PAR S is an ideal fixture for Theatre, Houses of Worship, Live Events, Themed Environments, Hospitality, or Installations where high output, small form factor, simple design, and easy deployability are required.
