ADJ AX2191 Aria X2 TB Wireless DMX Transceiver

The Aria X2 TB is a powerful and flexible wireless DMX transceiver built for professional performance in any environment. Featuring dual power options- AC or an internal rechargeable battery that delivers up to 20 hours of operation on a full charge. Designed for reliable signal transmission, intuitive control, and rugged durability, the Aria X2 TB ensures stable, seamless communication wherever your setup takes you.

Supported Protocols

• DMX
• RDM (Planned for future software release)
• Proprietary 802.15.4
• Aria X2 Mesh Protocol (Planned for future software release)
• Bluetooth 4.2 (BLE)
• Aria X2 Serial Protocol
• This is our proprietary serial protocol for communicating with a variety of fixtures.

RF Characteristics

• Frequency range
• Bluetooth: 2402-2480 MHz
• Zigbee: 2405-2480 MHz (EU)
• Sub-GHz: 906-924 MHz (US)
• Radio module: Aria X2
• Interference mitigation
• CSMA
• Adaptive frequency hopping (on the roadmap)
• OTA updates

Standards

• EN IEC 62311:2020
• EN50665:2017
• BS EN IEC 62311:2020
• BS EN 50665:2017
• EN IEC 62368-1: 2020+A11:2020
• BS EN IEC 62368-1: 2020+A11:2020
• EMC
• ETSI EN 301 489-1 V2.2.3 (2019-11)
• ETSI EN 301 489-3 V2.3.2 (2023-01)
• ETSI EN 301 489-17 V3.2.4 (2020-09)
• EN 55032:2015/A1:2020
• EN 55035:2017/A11:2020
• EN 61000-3-3:2013/A2:2021
• EN IEC 61000-3-2:2019/A1:2021
• BS EN 55032:2015/A1:2020
• BS EN 55035:2017/A11:2020
• BS EN 61000-3-3:2013/A2:2021
• BS EN IEC 61000-3-2:2019/A1:2021
• EN 300 220-1 V 3.1.1 (2017-02)
• EN 300 220-2 V 3.2.1 (2018-06)
• ETSI EN 300 328 V2.2.2 (2019-07)

Physical

• IP20 Aluminum / Metal enclosure

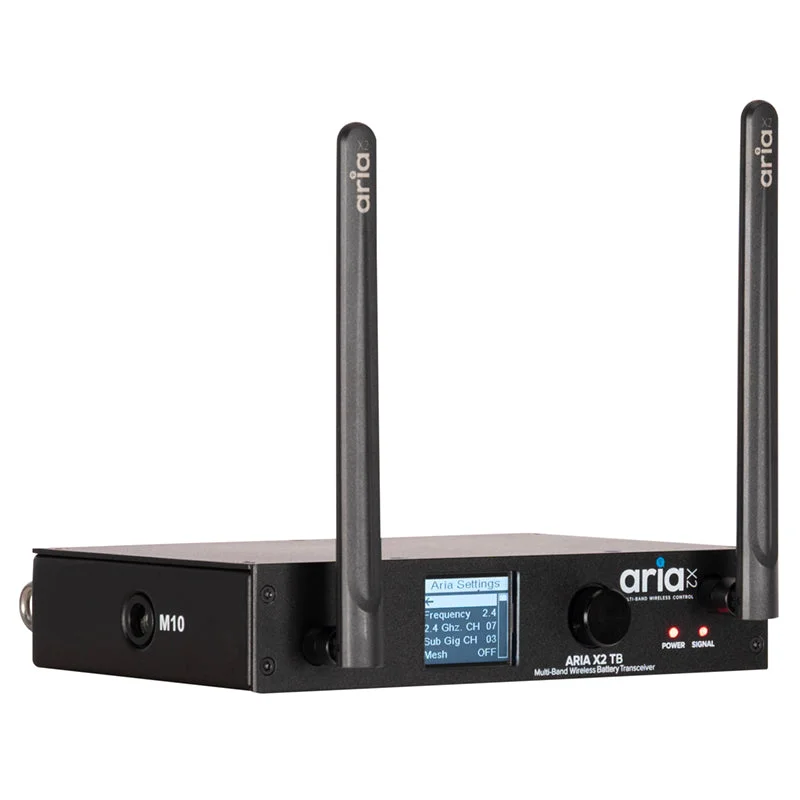

• Front panel digital screen and rotary knob

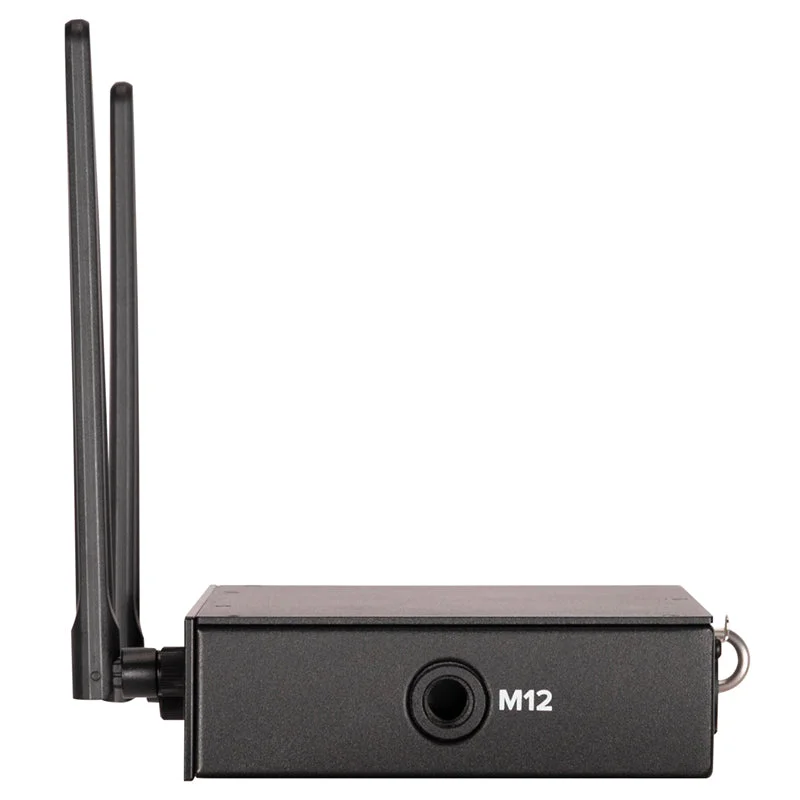

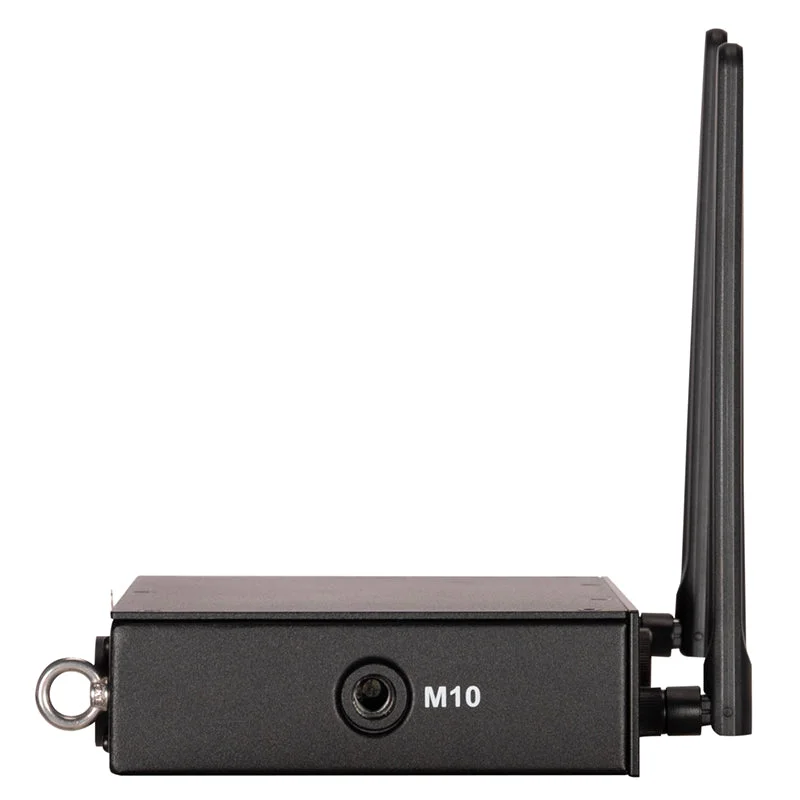

• M10 and M12 Threads
• Safety Eyelet
• Max ambient operating temp: 113°F (45°C)
• Max operating humidity: <75%
• Storage temperature: 77F (25°C)

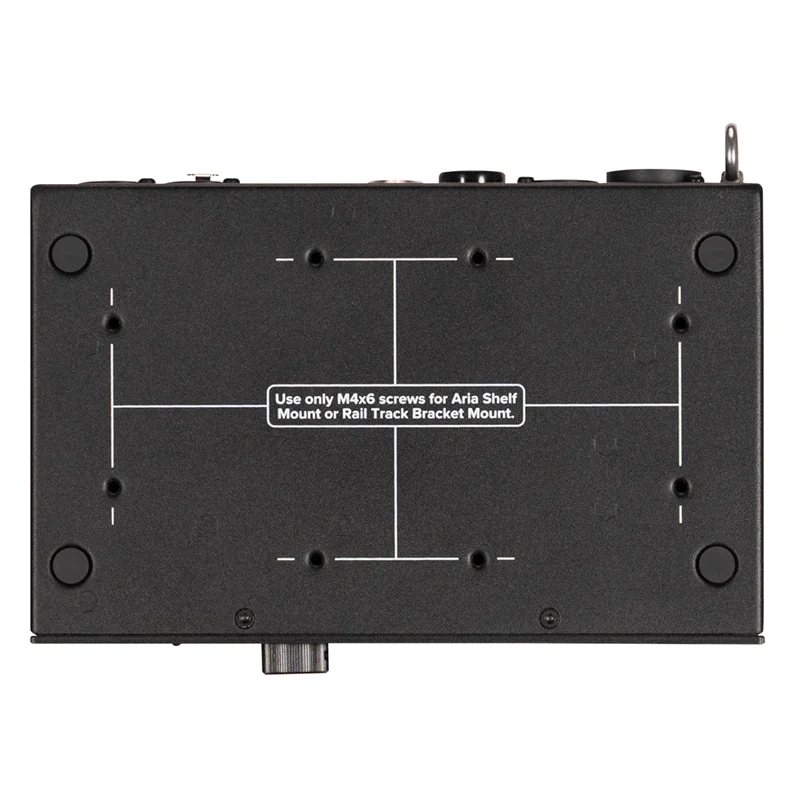

• Rack and wall mount accessories
